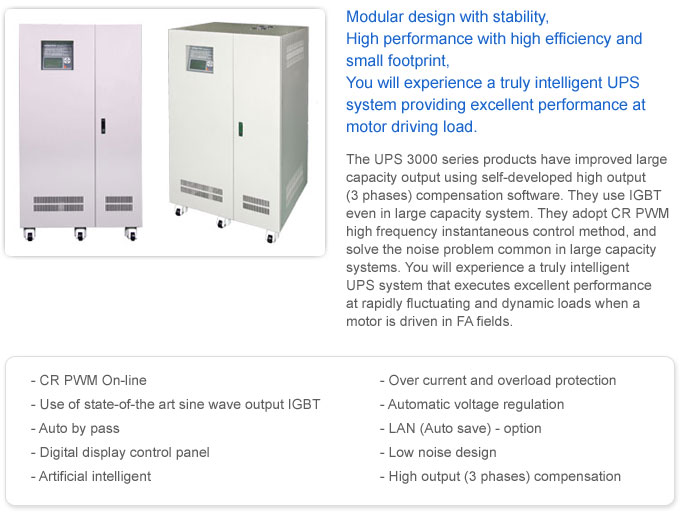

HOME PRODUCT UPS UPS 3000 Series
Electrical specification of MAPS U 3000 series(Input 3 phases : Output 3 phases)
Classification Electric Characteristics
Default capacity(KVA) 10/15/20/30/50/75/100/150
General Cooling Forced cooling
Rated usage 100% continuous
Rectifier Unit Control High performance switching
Charge Unit Element DIODE & MOS-FET
Inverter Unit Control PWM for high frequency (20KHz) current control
Element I.G.B.T
STATIC S/W Switching Seamless switching by IC
Transformer insulation class Class H
Input Power Phase 3Ø3W or 3Ø4W
Rated voltage(AC) Selectable from 220V/380V/440V/480V
Voltage fluctuation ±15% of rated voltage
Rated frequency 50Hz or 60Hz ± 5%
Output Power Phase 3Ø3W or 3Ø4W
Rated voltage(AC) Selectable from 120V/208V/220V/380V
Voltage fluctuation ± 1%
Rated frequency 50Hz or 60Hz ± 0.3Hz
Frequency sync. ± 1Hz
Excessive voltage fluctuation ± 8%
Excessive response rate 20msec
Output voltage adjustment ± 10%
Form factor THD 3% or lower (at 100% of linear load)
Overload resistance 10 minutes at 120% load
Power factor 0.8 lag or higher
Noise 10KVA 15~60KVA 75~150KVA
60dB 65dB 70dB
Overall efficiency 86% or greater (at rated I/O and load)
Sync.
switching		 Switching time Seamless (0 msec)
Switching condition Inverter failure/output overload
Battery Battery type Battery (MF or ES type)
Battery capacity Determine at purchase
No. of cells 10~15KVA 20~50KVA 75~150KVA
16CELL 20CELL 20CELL/32CELL
Rated voltage(DCV) 192 240 240/384
Min. voltage(DCV) 216 270 270/432
Min. voltage(DCV) 168 210 210/336
Power failure compensation 30min
Insulation
characteristics		 Dielectric strength 1 min. at AC 1500V 60Hz PCB (control circuit), ICs and condensers should be separated
Insulation resistance 5 Mohms or greater at DC 500V mega
Temperature
hike		 Transformer & reactor 140 deg. or lower
IC 80 deg. or lower
Munsell Number
▶This spec is subject to change without prior notice in the process of upgrading the performance of the system.
Dimension of MAPS U 3000 series(Input single phase : Output single phase)
Capacity DIMENSION(mm) Capacity DIMENSION(mm)
W D H W D H
10KVA 650 750 1200 50KVA 800 900 1550
15KVA 650 750 1200 75KVA 1000 950 1800
20KVA 650 750 1200 100KVA 1000 950 1800
30KVA 750 800 1320 150KVA 1000 850 1900
▶This spec is subject to change without prior notice in the process of upgrading the performance of the system.
