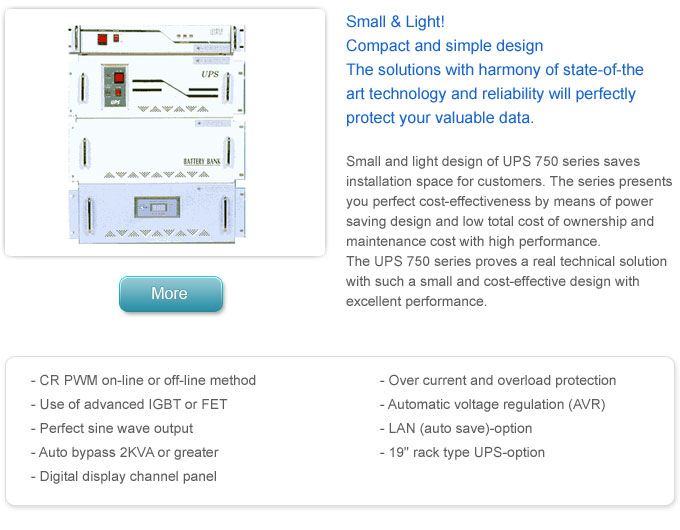

HOME PRODUCT UPS UPS 750 Series
Electrical specification of MAPS U 750 series (Input single phase : Output single phase)
Classification UPS Specification
Default capacity (VA) 500 / 750 / 1000 / 2000
General
Spec		 Rated usage 100% continuous
Charge control Constant voltage charging
Inverter control 60Hz instantaneous control PWM (FET Off Line)
Switching method Relay or IC
Transformer insulation class H Class
Input
Voltage		 Phase 1 Ø 2W
Rated voltage 220V
Voltage fluctuation ± 15%
Rated frequency 60Hz ± 5%
Output
Voltage		 Phase 1 Ø 2W
Rated voltage (AC) 220V
Voltage stability AC220V -10%
Commercial power failure
& response speed		 5% of rated voltage, 20ms
Excessive voltage
& response speed		 8.33m/s
Waveform distortion 3% (overall)
Efficiency 0.98 at normal voltage input, 0.85 or greater at power failure
Noise 45dB or lower at a 1.5m point from rear and front side of target equipment.
Overall efficiency 85%or great
Sync. switching time
 Seamless (0 msec)
Overall efficiency
 89% or greater (at rated input/output/rated load)
Battery Battery model MF battery (ES TYPE)
Battery capacity 4 / 7 / 12 AH
Insulation
characteristics		 Dielectric strength 1 minute at AC 1500V, 60Hz
Insulation resistance 10Mohms or greater measured at DC 1000V Mohms

▶This specification is subject to change without prior notice in the process of upgrading the performance of the system.
